TAPER ADAPTOR MT3 - B16

TAPER ADAPTOR MT3 - B16

Trade Catalogue · Quote on Request

This item is part of our full trade catalogue. Pricing depends on quantity and delivery location — request a quote below and our team will respond within 1 business day. Minimum order value for trade quotes is R2,500.

block: block, product: product, product_form_id: product_form_id, section_id: section.id, show_pickup_availability: true -%}

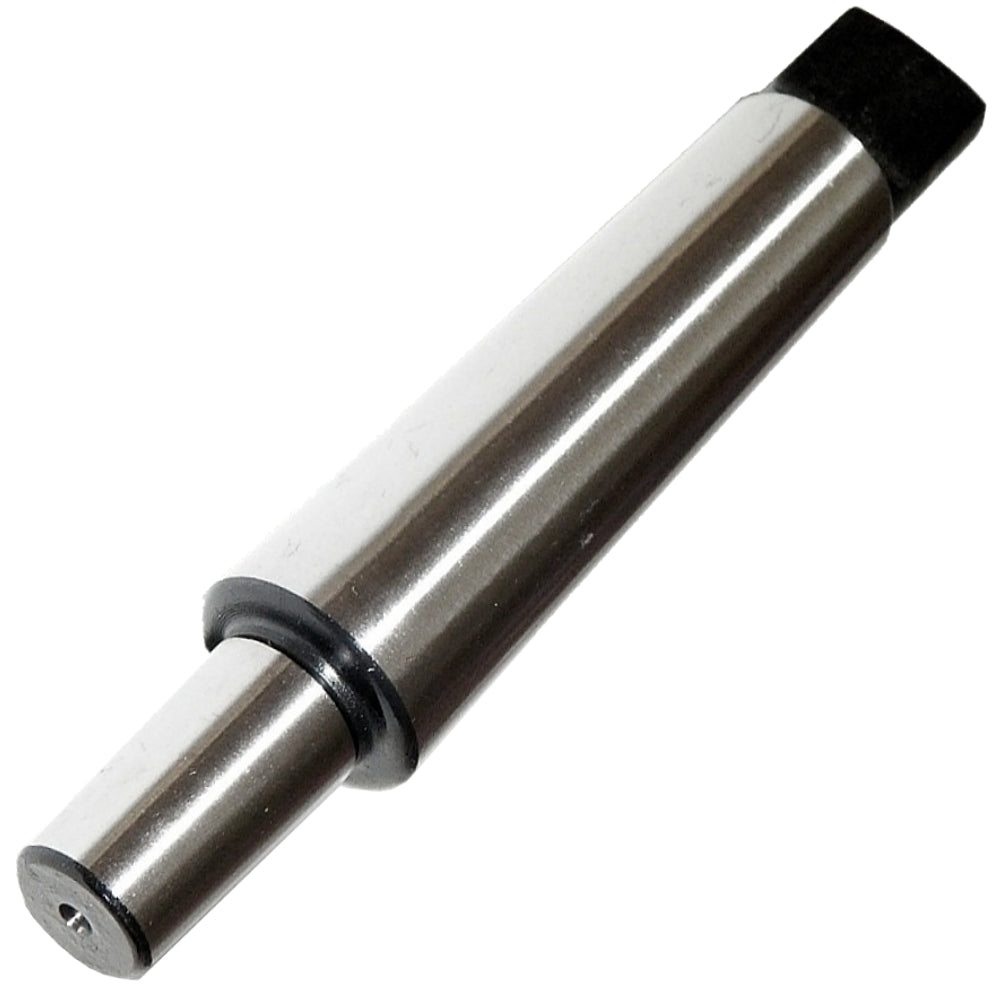

MT3 - B16 arbor

Morse taper MT3 to B16 arborDrill chuck morse taper holder for the adaption of a drill chuck for your drill or mill. Simply fit the drill chuck onto the B16 side and away you go.

Features
  • Outside taper: MT-3,
  • Pintle Size: B16.
  • Hardened tang and precision ground
  • Used to adapt drill chucks to your drill press, milling machine or lathe

Installation Info
Clean both tapers of all grease and grit. With the chuck jaws completely retracted into the chuck and using a thin piece of wood to protect the chuck nose, tap the chuck into place on the spindle/taper adaptor.

To remove chuck from arbor
Insert wedges between the back of the chuck and the shoulder of the arbor as shown in the picture on the right.

By tapping these wedges with a hammer or applying force in a bench vice, the wedges will force the chuck off the arbor shaft.
